SPECIFICATIONS

Brand Name: lemorele

Certification: CE,RoHS,FCC

Choice: yes

Connector Type: Wireless

Hdmi wireless transceiver: hdmi wireless transmitter and receiver

Origin: Mainland China

Video Transmitter and Receiver: hdmi wireless image transceiver

Wireless Image Video Transmission Extender: hdmi wireless splitter

Wireless Video Transmission Kit: Audio & Video Transmitter

wireless HDMI transmitter and receiver: hdmi extender

Note:

1. RX cannot be used alone, it must be used in conjunction with TX!!!(Because the product supports 4RXs+1TX in combination, the RX sold separately is for customers who need to purchase multiple RX.)  2. TX can be used alone (using TUTUplay as a receiver) and supports connecting up to 4 TUTUplay APP.  Please carefully choose what you need before placing an order.  Thank you for your understanding!!!

Wireless Video Transmission Systems

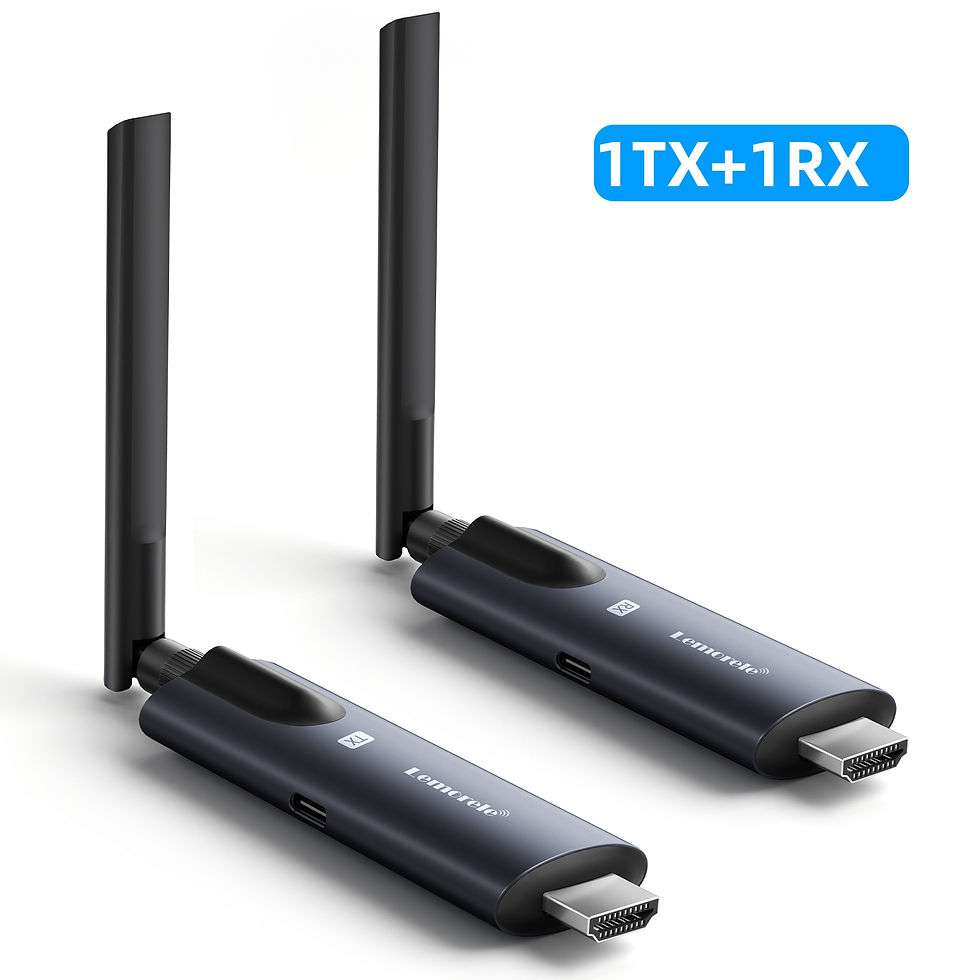

Lemorele R1000 series wireless video transmission system supports 200 meters HD video transmission. External 5DB high gain Wi-Fi antenna with less than 50ms latency. R1000: Equipped with 1 transmitter for connecting to a computer or other source device, and 1 receiver for connecting to a monitor, projector or TV (or download APP Monitor TuTuPlay as a receiver).(1TX+1RX transmission distanceabout 200m). R2020: Equipped with 1 receiver alone (RX can not be used alone, it must be used with TX!!! the series supports up to 1 transmitter and 4 receivers) R1010: Equipped with 1 transmitter and 2 receivers.(1TX+2RX transmission distanceabout 130m).

R1030: Equipped with 1 transmitter and 3 receivers.(1TX+3RX transmission distanceabout 100m). R1040: Equipped with 1 transmitter and 4 receivers.(1TX+4RX transmission distanceabout 100m). R800: Equipped 1 transmitter (TX can be used alone ,using TUTUplay as a receiver, up to 4 APP Monitor TuTuPlay connections)

Transmission distance

Transmitter and receiver are external 5DB gain antenna, in the case of a transmitter and a receiver can achieve 200 meters of wireless transmission distance, in the case of a transmitter and two receivers can achieve 130 meters of wireless transmission distance, in the case of a transmitter and three receivers as well as a transmitter and four receivers can achieve 100 meters of wireless transmission distance. Distance: The distance between the transmitter and receiver.

Clarity and TuTuPlay

Through Lemorele self-developed H.264 codec technology, in the case of one transmitter and multiple receivers can achieve 1080P60HZ refresh rate, which is very clear for the 200-inch display device. Wi-Fi adaptive frequency hopping through Realtek high performance module, even in large venues or conferences. Provide Android and iOS version of APP Monitor TuTuPlay, which can be monitored on cell phones or tablets.

Plug and Play

No need for complicated wiring and computer configuration, just plug the transmitter into the HDMI p
